Everest

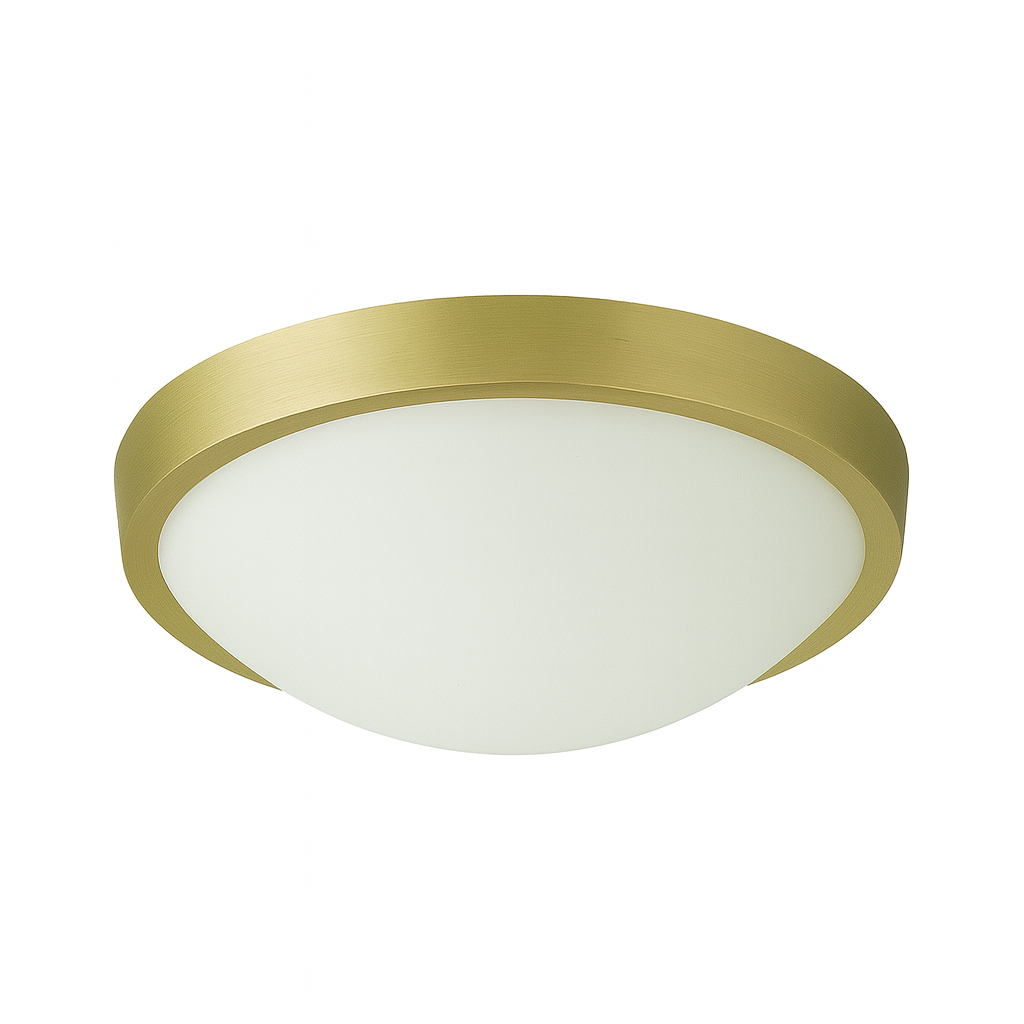

Everest LED Flush Round Ceiling Fixture features a Two Piece Spinning Trim Design, a drop acrylic bowl, and displays a clean contemporary design.

Categories: ,
Everest Ceiling LED Standard Features
Download

Everest Ceiling LED IES Files
Download

Product Number: EV-C-15-12W-MN-WF

SPECIFICATION FEATURES

Product Numbers:

EV-13-8W 8LED
EV-13-12W 12LED
EV-15-12W 12LED
EV-15-24W 24LED
EV-19-24W 24LED
EV-19-48W 48LED

Material

Paintlok Non-Rustable Steel construction spun for high quality appearance, standard powdercoat finish, P95 white smooth acrylic bowl lens, .125 thick.

Installation
Supplied with standard mounting hardware to mount to a 4” J-box or plaster ring

Optics

Contact Evergreen Lighting for complete photometrics.

LED

Alta #AL-R-1W-30 LED array to be mounted onto an Aluminum MPCB Board configured to the proper wattage.The LED arrays will be centered within the Lens area and decorative on a white aluminum reflective plate.

Driver

Specific Drivers will be matched with each different LED array configuration/ wattage. Standard Driver features are:

  • Constant Current
  •  5 year warranty
  • 120/277 multi-voltage power supplies
  • IP66, IP67
