Irvine

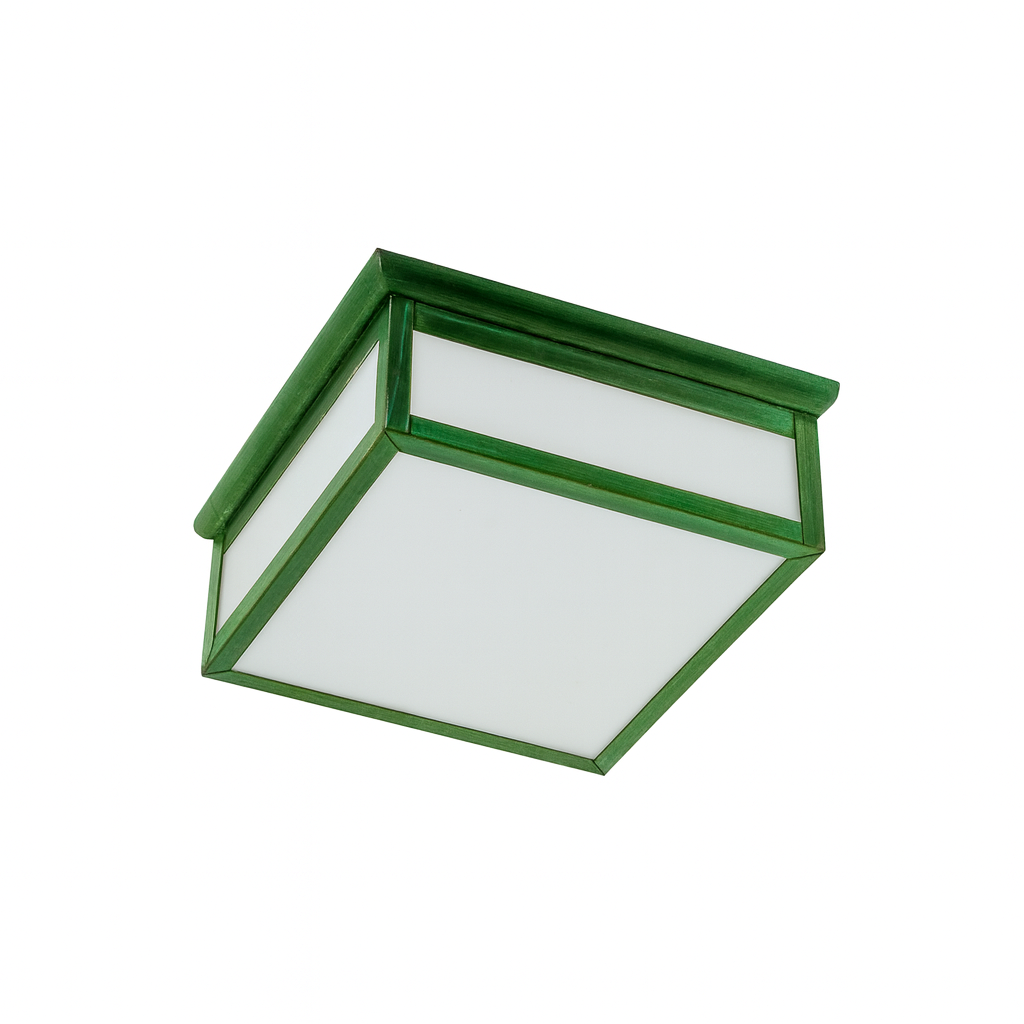

Irvine LED Flush Square Ceiling Fixture features a Craftsman Style Cage Design with a rounded ceiling trim, Acrylic Panels, and displays a clean rustic look.

Categories: ,
Irvine Ceiling LED Standard Features
Download

Irvine Ceiling LED IESl Files
Download

Product Number: IR-C-14-12W-AB-A

SPECIFICATION FEATURES

Product Numbers:

IR-10-8W
IR-10-12W
IR-14-12W
IR-14-24W
IR-18-24W
IR-18-48W

Material

Paintlok Non-Rustable Steel construction spot welded for high quality appearance, standard powdercoat finish, P95 white smooth acrylic flat panels, .125 thick.

Installation

Supplied with standard mounting hardware to mount to a 4” J-box or plaster ring

Optics

Contact Evergreen Lighting for complete photometrics.

LED

Alta #AL-R-1W-30 LED array to be mounted onto an Aluminum MPCB Board configured to the proper wattage.The LED arrays will be centered within the Lens area and decorative on a white aluminum reflective plate.

Driver

Specific Drivers will be matched with each different LED array configuration/ wattage. Standard Driver features are:

  • Constant Current
  •  5 year warranty
  • 120/277 multi-voltage power supplies
  • IP66, IP67
