Saturn

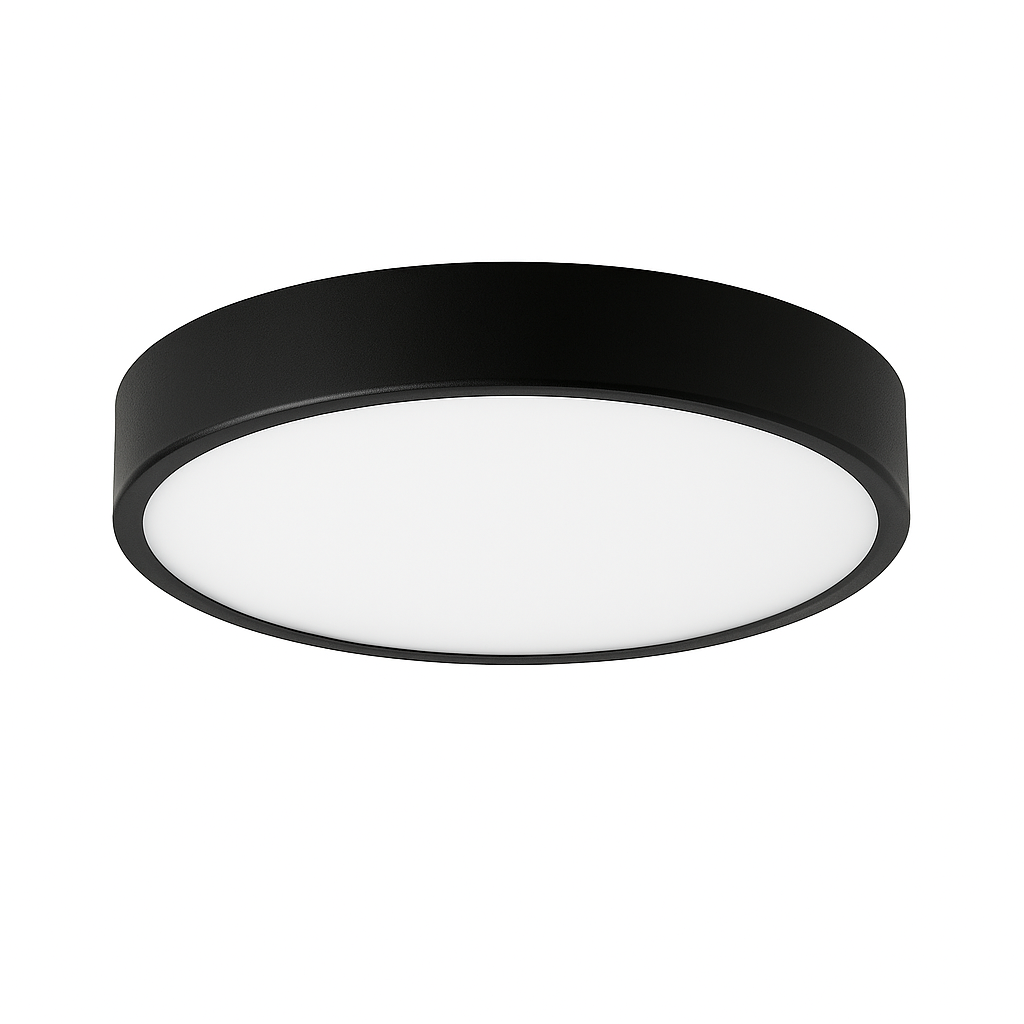

Saturn LED Flush Round Ceiling Fixture features a Solid Metal Sided Spinning Housing with a Cutoff Flat Bottom Lens

Categories: ,
Saturn Ceiling LED Standard Features
Download

Saturn Ceiling LED IES Files
Download

Product Number: STN-C-24-72W-MN-A

SPECIFICATION FEATURES

Material

Aluminum Spun construction for high quality appearance, standard powdercoat finish, P95 white smooth acrylic bottom lens, .125 thick.

Installation

Supplied with standard mounting hardware to mount to a 4” J-box or plaster ring

Optics

Contact Evergreen Lighting for complete photometrics.

LED

Alta #AL-R-1W-30 LED array to be mounted onto an Aluminum MPCB Board configured to the proper wattage.The LED arrays will be centered within the Lens area and decorative on a white aluminum reflective plate.

Driver

Specific Drivers will be matched with each different LED array configuration/ wattage. Standard Driver features are:

  • Constant Current
  •  5 year warranty
  • 120/277 multi-voltage power supplies
  • IP66, IP67
