Yale

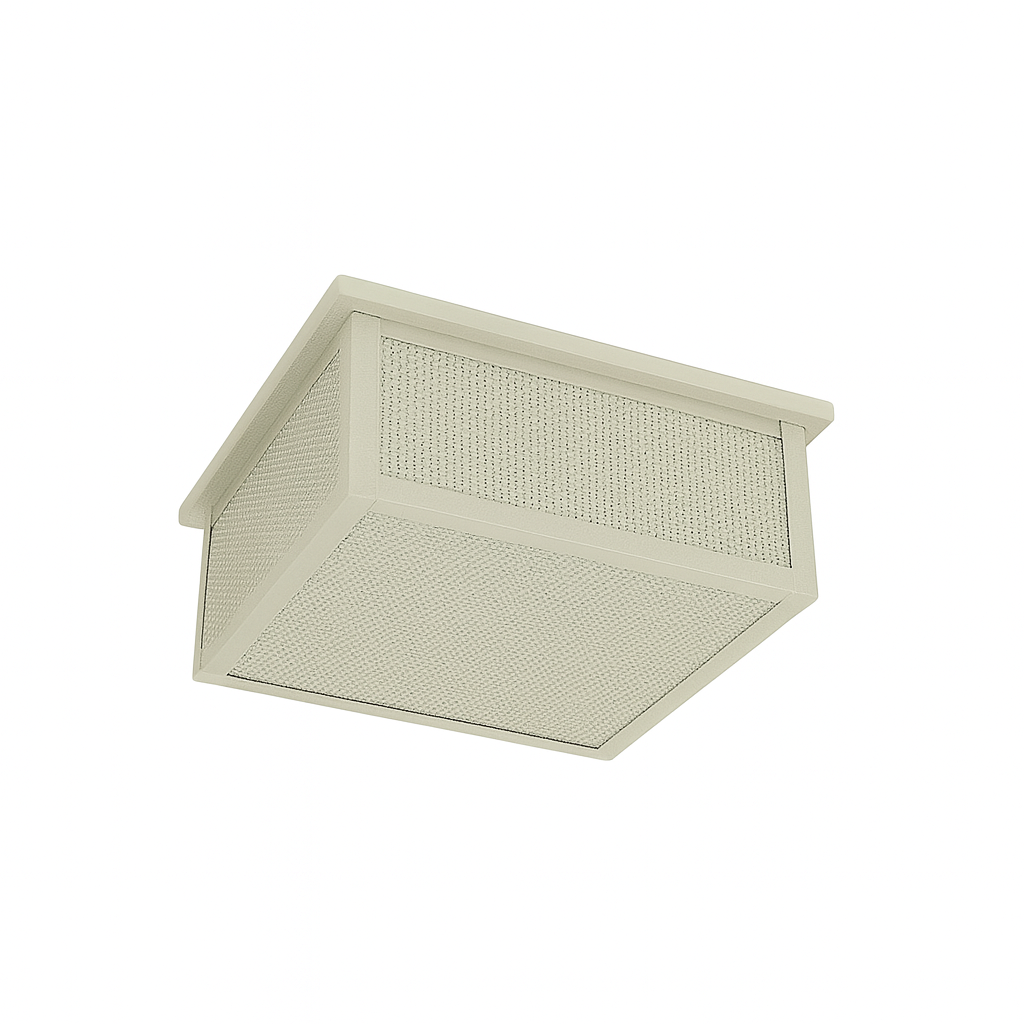

Yale LED Flush Square Ceiling Fixture features a Craftsman Style Cage Design with a Perforated Filler with Acrylic Inlay Panels, and displays a clean and modern look.

Categories: ,
Yale Ceiling LED Standard Features
Download

Yale Ceiling LED IES Files
Download

Product Number: YA-C-14-12W-MN-A

SPECIFICATION FEATURES

Product Numbers:

YA-10-8W
YA-10-12W
YA-14-12W
YA-14-24W
YA-18-24W
YA-18-48W

Material

Aluminum Perforated Sheet construction spot welded for high quality appearance, standard powdercoat finish, white smooth acrylic inlay flat panels, 1/16” thick.

Installation

Supplied with standard mounting hardware to mount to a 4” J-box or plaster ring

Optics

Contact Evergreen Lighting for complete photometrics.

LED

Alta #AL-R-1W-30 LED array to be mounted onto an Aluminum MPCB Board configured to the proper wattage.The LED arrays will be centered within the Lens area and decorative on a white aluminum reflective plate.

Driver

Specific Drivers will be matched with each different LED array configuration/ wattage. Standard Driver features are:

  • Constant Current
  •  5 year warranty
  • 120/277 multi-voltage power supplies
  • IP66, IP67
